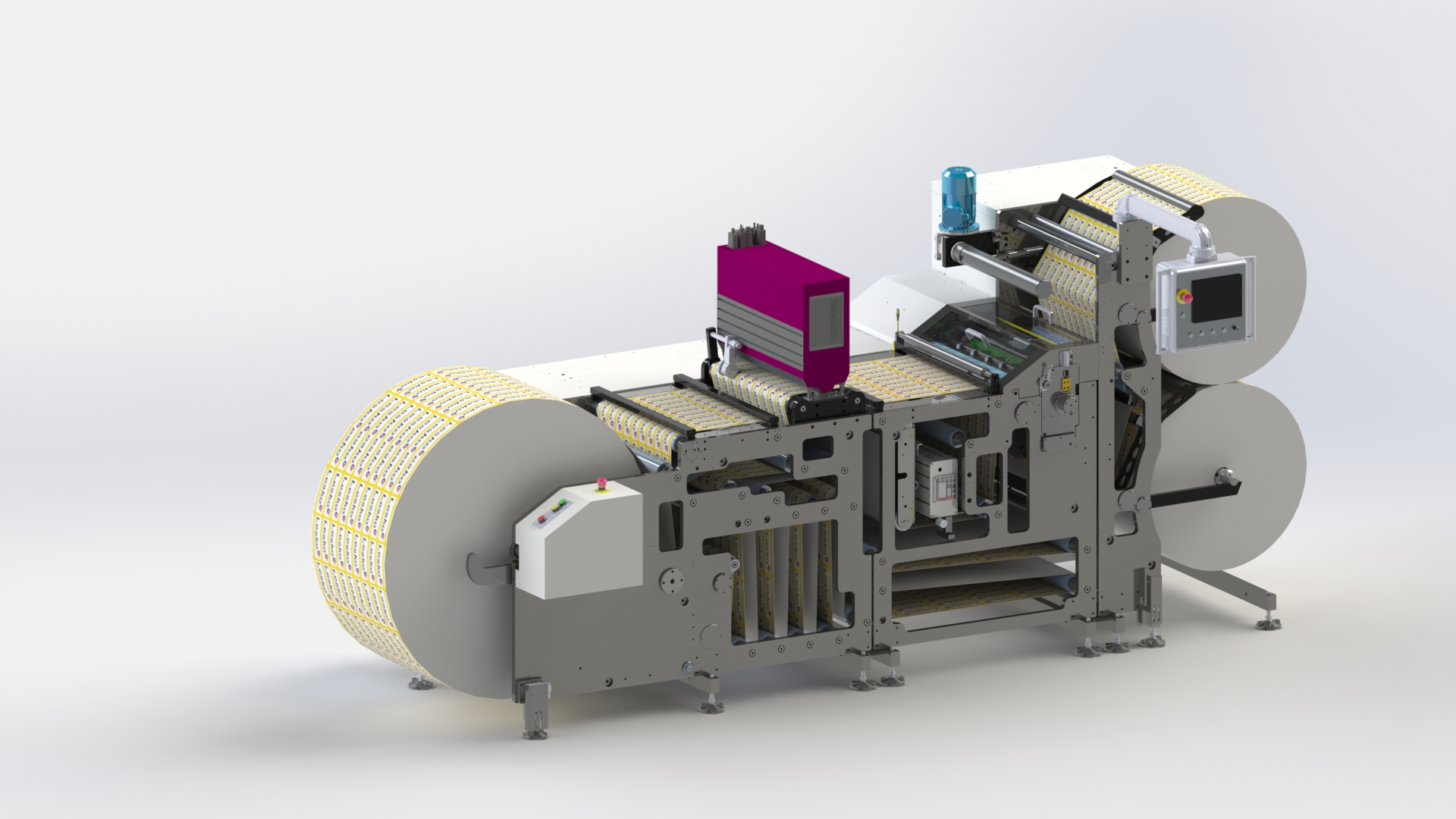

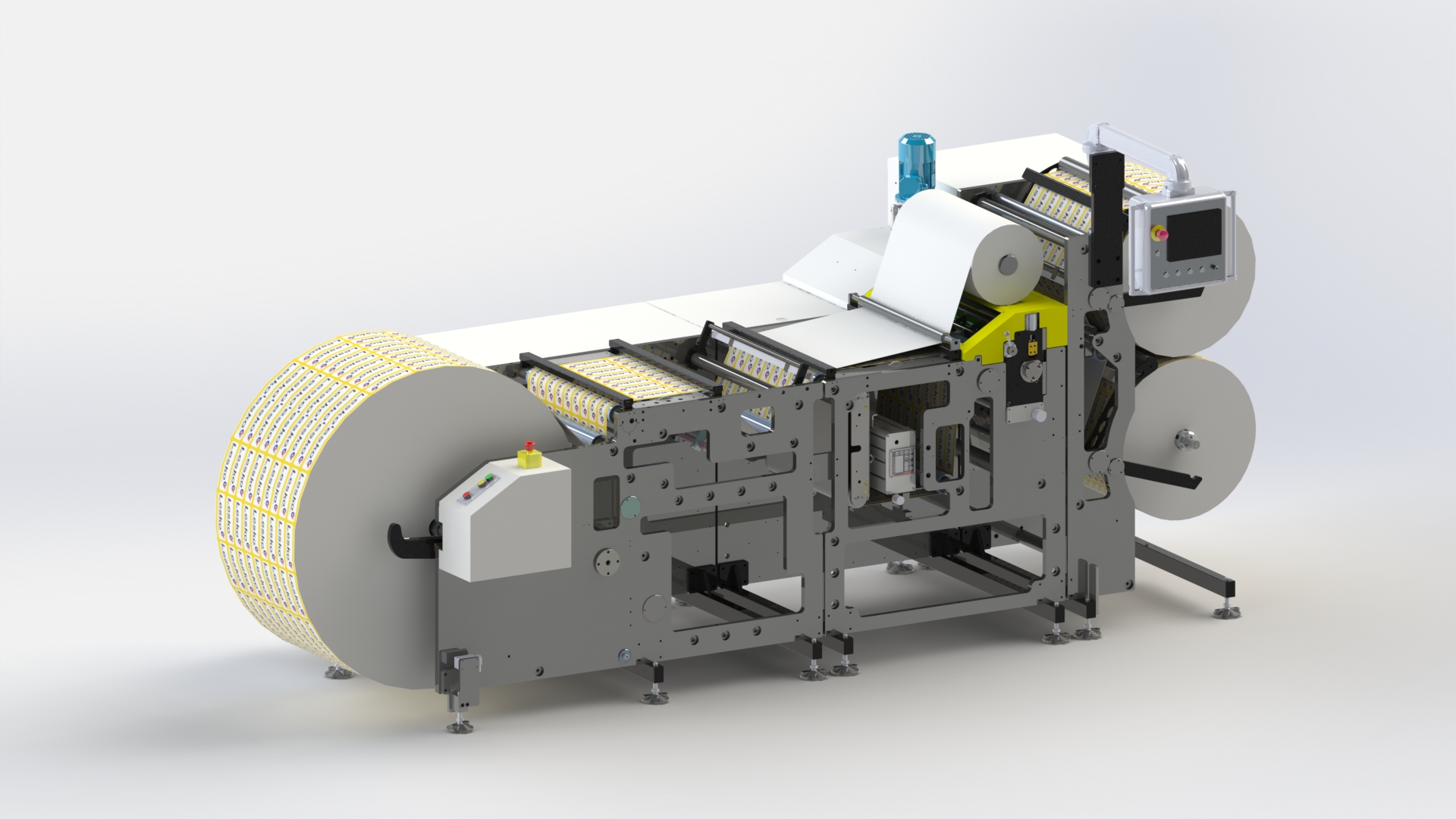

LESKO M600

Inspection machine LESKO M600 is dedicated to work with difficult materials (thin foils) rewinded on big reels (max. 570 mm web's width and up to 1250 mm diameter of reel). The machine is ideally suited for:

• preprinted materials confectioning
• precise slitting
• inspection

TECHNICAL DATA:

• max. web width                                                                 570 mm
• max. speed                                                                         500 m/min
• max. unwinding diameter                                               up to 1250 mm
• max. lifting capacity                                                         450 kg
• unwinder and rewinder pneumatic shaft                   Ø 76 mm
• max. rewinding diameter on single shaft                    Ø 1 x 600 mm
• max. rewinding diameter on double shaft                   Ø 2 x 600 mm

control:

• microprocessor control
• touchscreen control panel 7" with intuitive interface

motors:

• AC motor - the main drive
• AC motor - unwinder
• servo motor on each rewinding shaft

optional:

• servo motor on unwinder (active compensation of tension during acceleration and braking)

sensors:

• meters and labels electronic counter

optional:

• US sensor for transparent labels
• sensor for detecting the flags

UNWINDER:

• max. roll diameter                        up to 1250 mm
• max. lifting capacity                     450 kg
• pneumatic shaft     Ø 76 mm + special system for easy loading of new roll
• ultrasonic sensor of current roll's diameter ensuring constant tension of the web during the whole production

SPLICE TABLE:

• located after the unwinder
• equipped with pneumatic clamp blocks, thanks to which the tension of the material is retained during webs connection

INSPECTION:

• place for the installation of any inspection system available on the market
• buffer for high-speed inspection mode
• additional inspection table for repairs of defective material
• additional waste rewinder for faulty parts of material

WEB GUIDE:

• BST web guide system located before shear cutting knives unit enables precise slitting

NIP-ROLL:

• pneumatically clamped roller ensure an equal pressure across the entire web's width
• easy replacement and cleaning of rubber roller

SLITTING UNIT 4G:

• interchangeable shear cutting and razor blade unit
• pneumatically clamped
• the whole unit can be slided outside the machine for easy adjustment of knives
• min. cutting width 20 mm
• easy to remove knives shaft

REWINDER:

• pneumatic clamp to hold the web's end when machine stops
• pneumatic shaft                             Ø 76 mm
• max. rewinding diameter             Ø 600 mm
