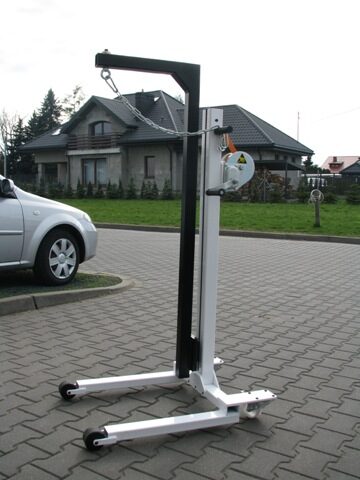

ROLL AND CYLINDER LIFTERS
Our company offers versatile devices for:
rolls loading and unloading
cylinders loading and unloading.
Compact and manoeuvrable lifters enable easy work and fast retooling of machines. Thanks to exchangeable spindle and arm one lifter can perform two functions. Its parameters allow you to transport rolls and cylinders directly from the warehouse to the machine.
FEATURES AND OPTIONS
- Length: 800 mm
- Width: 560 mm
- Height: 1320 mm

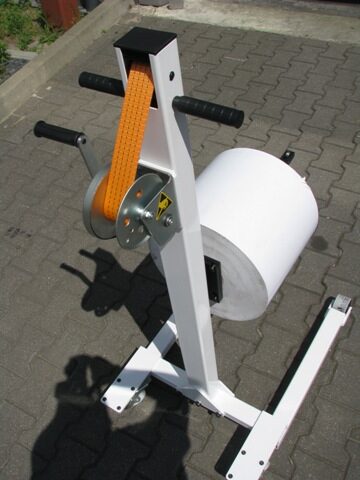

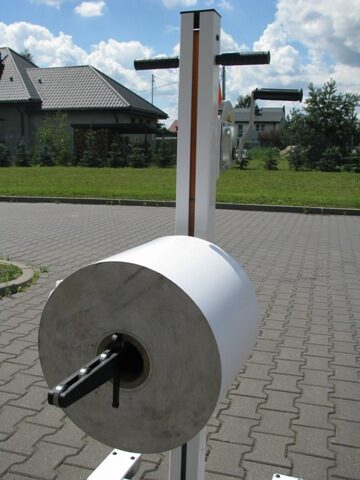

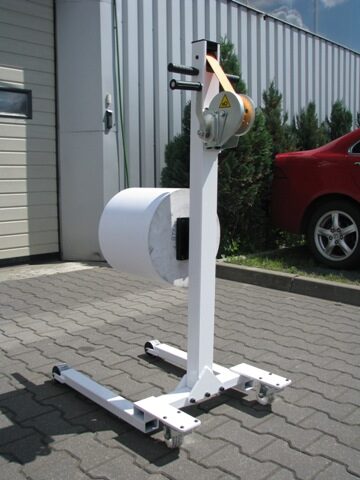

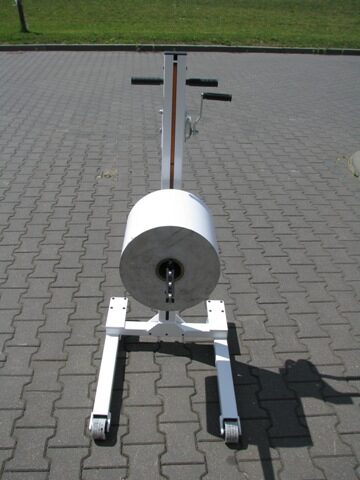

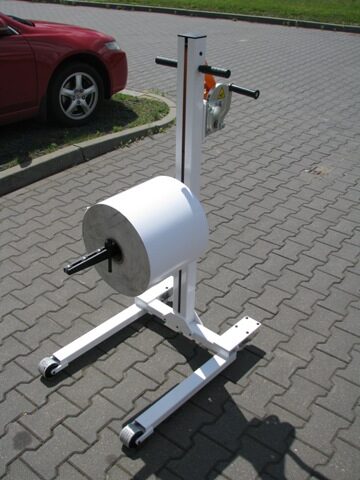

- Spindle max lifting capacity: 200 kg

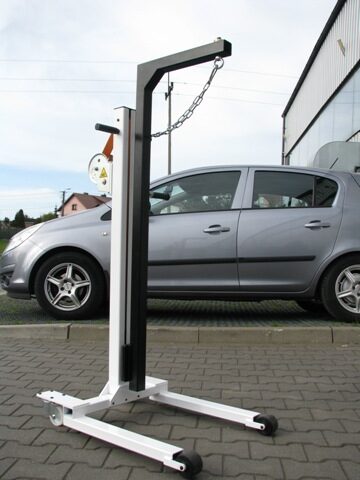

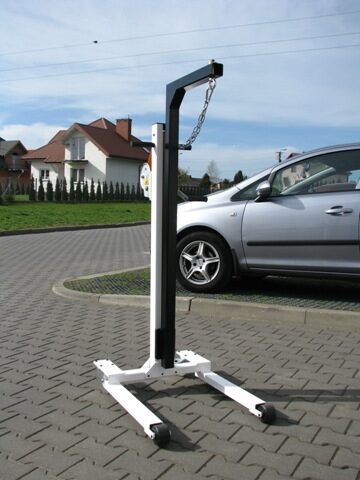

- Arm max lifting capacity: 50 kg
- Roll max width: 440 mm
- Roll lifting height: 250-1100 mm

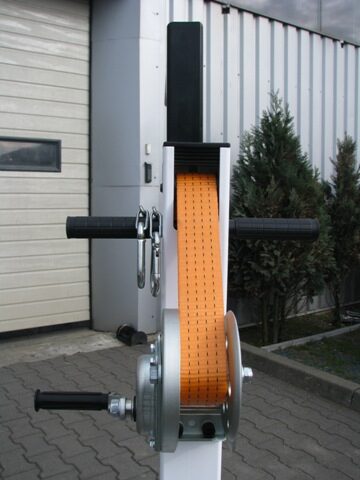

- Easy dismantling and replacement of arm and spindle

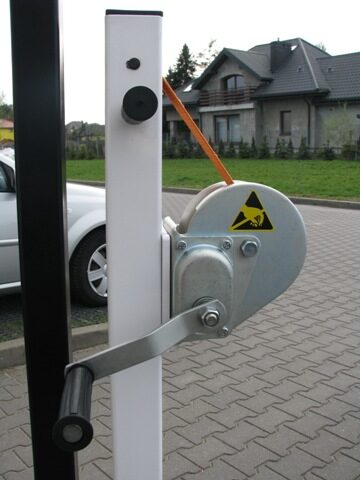

- Manual or pneumatic lifting
